Assembly Workbench

Easy to assemble! Ideal for tasks in factories and warehouses with frequent going up and down

Can be easily assembled in a short time using the included hex wrench.
Wide, anti-slip steps provide safe ascent and descent, making it ideal for frequent up-and-down tasks in warehouses or construction sites.
The platform thickness has been increased by 10 mm, improving stability and resistance to bending.
Side panels are fully welded, ensuring a strong structure that is resistant to deformation during use.
Handrail height on the landing platform can be selected according to specific needs.

■ Customs Clearance: NO

*If the above says “Customs Clearance: Yes”, the product requires import/export procedures.

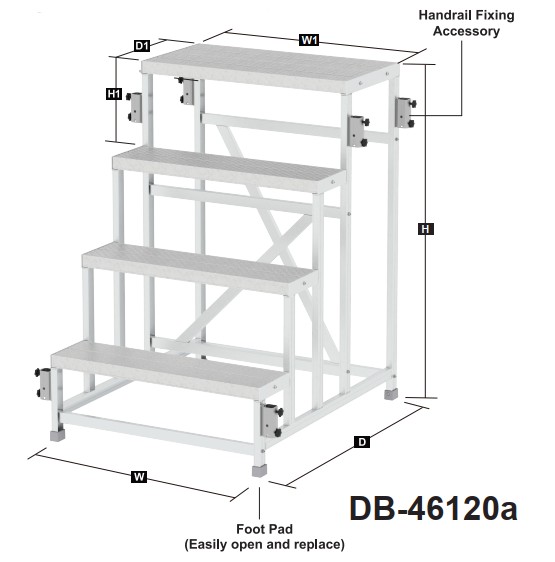

Product Specifications

Model	H (cm)	Steps	Distance of steps (cm)	Top step (cm)		Installation status (cm)		Height (with handrail)	Weight (kg)
Model	H (cm)	Steps	Distance of steps (cm)	W1	D1	W	D	Height (with handrail)	Weight (kg)
DB-1425a	25	1	–	40	50	41	51	25	3.8
DB-1450a	50	1	–	40	50	41	51	50	5
DB-1650a	50	1	–	60	50	61	51	50	6.3
DB-1850a	50	1	–	80	50	81	51	50	8
DB-1X50a	50	1	–	100	50	101	51	50	9.5
DB-2550a	50	2	25	50	50	51	71	50	6.8
DB-2650a	50	2	25	60	50	61	71	50	7.6
DB-2850a	50	2	25	80	50	81	71	50	9.2
DB-2X50a	50	2	25	100	50	101	71	50	10.8
DB-2560a	60	2	30	50	40	51	61	60	6.9
DB-2660a	60	2	30	60	40	61	61	60	7.8
DB-2860a	60	2	30	80	40	81	61	60	9.4
DB-2X60a	60	2	30	100	40	101	61	60	11
DB-3675a	75	3	25	60	50	61	91	75	12
DB-3875a	75	3	25	80	50	81	91	75	14.4
DB-3X75a	75	3	25	100	50	101	91	75	16.6
DB-3690a	90	3	30	60	40	61	81	90	12.4
DB-3890a	90	3	30	80	40	81	81	90	14.4
DB-3X90a	90	3	30	100	40	101	81	90	16.4
DB-46100a	100	4	25	60	50	61	110	100	16.1
DB-48100a	100	4	25	80	50	81	110	100	18.9
DB-4X100a	100	4	25	100	50	101	110	100	21.7
DB-46120a	120	4	30	60	40	61	101	120	16.2
DB-48120a	120	4	30	80	40	81	101	120	19.2
DB-4X120a	120	4	30	100	40	101	101	120	22.2
DB-5X125a	125	5	25	100	50	101	131	125	25.8
DB-5X150a	150	5	30	100	40	101	121	150	27.3
DB-2550a H	50	2	25	50	50	51	71	150±10	16
DB-2650a H	50	2	25	60	50	61	71	150±10	16.9
DB-2850a H	50	2	25	80	50	81	71	150±10	18.8
DB-2X50a H	50	2	25	100	50	101	71	150±10	20.8
DB-2560a H	60	2	30	50	40	51	61	160±10	15.9
DB-2660a H	60	2	30	60	40	61	61	160±10	16.9
DB-2860a H	60	2	30	80	40	81	61	160±10	18.8
DB-2X60a H	60	2	30	100	40	101	61	160±10	20.8
DB-3675a H	75	3	25	60	50	61	91	175±10	20.2
DB-3875a H	75	3	25	80	50	81	91	175±10	22.7
DB-3X75a H	75	3	25	100	50	101	91	175±10	25.3
DB-3690a H	90	3	30	60	40	61	81	190±10	20.3
DB-3890a H	90	3	30	80	40	81	81	190±10	22.6
DB-3X90a H	90	3	30	100	40	101	81	190±10	25.2
DB-46100a H	100	4	25	60	50	61	110	200±10	24.7
DB-48100a H	100	4	25	80	50	81	110	200±10	28
DB-4X100a H	100	4	25	100	50	101	110	200±10	31
DB-46120a H	120	4	30	60	40	61	101	220±10	24.8
DB-48120a H	120	4	30	80	40	81	101	220±10	28.1
DB-4X120a H	120	4	30	100	40	101	101	220±10	31.5
DB-5X125a H	125	5	25	100	50	101	131	225±10	35.1
DB-5X150a H	150	5	30	100	40	101	121	250±10	36.5
